Installation General Requirements

    Install control joints in plasterboard ceilings at:
    • 12m maximum intervals
    • All control joints in the structure
    • Any change in the substrate material
    • At the junction of a large room and passageway

    Separate plasterboard from building elements made with other materials, such as columns by creating control joints that allow for movement, e.g. utilizing a shadow line profile.

    All ceilings in this section are non-trafficable. Do not walk on plasterboard ceilings!

    Attach ceiling fixtures to framing members only. Ensure the framing is designed to carry any additional load.

    Do not rigidly affix a Strato panel to the perimeter.

    Framing

    • Cut Top Cross Rail (TCR) and furring channel to leave 20mm expansion gaps at each wall.
    • Stagger joints in TCR and furring channel by 1200mm
    • Install additional framing members around openings
    • Fix short edges of Strato panel boards to wide furring  channel.

    Do not affix Strato panel directly to timber joists.Sample of typical ceiling framing system.

    Click here for General Installation Principals

    Span (Framing Centers) for Strato Panel Standard Range

    Perforation Patterns Furring Channel Spacing
    Circular 8/18 R 333mm
    Circular 12/25 R 333.3mm
    Square 12/25 Q 333.3mm
    Alternating Circular 12/20/66 R 330mm
    Random Plus 8/15/20R 333.3mm
    Random Rectangular RE 333.3mm

    Span (Framing Centers)
    for Strato Panel Specialty Range

    Perforation Patterns Furring Channel Spacing
    Circular 6/18 R 333mm
    Circular 10/23 R 333.5mm
    Circular 15/30 R 330mm
    Square 8/18 Q 333mm
    Alternating Circular 8/12/50 R 333.3mm
    Random Plus 10/16/22 R 333.3mm
    Random Plus 12/20/35 R 312.5mm

    GypSorb StreamLine
    FC-60 Spacing Guide



    Board SizeFC-60 Spacing MMFC-60 Spacing Inches
    924 x 2706301mm11 – 27/32″
    1188 x 1980330mm13″
    900 x 2700300mm11 – 13/16″
    1200 x 2000334mm13 – 5/32″
    897 x 2760307mm12 3/32″
    1196 x 2001334mm13 – 5/32″
    1200 x 1980330mm13″
    1188 x 1998333mm13 – 1/4″
    1188 x 2394300mm11 – 13/16″
    1200 x 1875313mm12 – 5/16″
    1200 x 2500313mm12 – 5/16″

    Rooms up to about 1614 sq ft


    • 1st panel row: Start application in the room center
    • Remaining panel rows: Install parallel to 1st row

    Rooms exceeding 1614 sq ft


    • 1st panel row: Start application in the center of the room
    • 2nd board row: transverse to 1st row – start approx. in room center
    • Remaining ceiling surface: Install after install of 1st and 2nd rows

    Board Arrangement

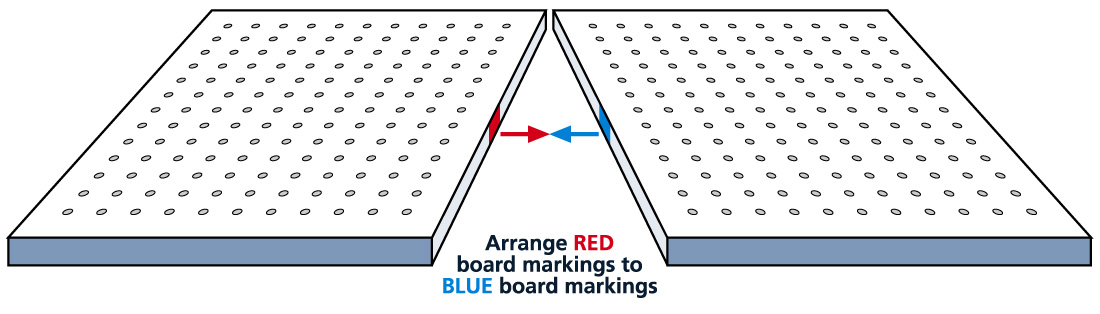

    GypSorb panels with standard/alternating perforation are marked red and blue on the cut edges.

    1. Align and fix the reference cord in the middle of the room in the direction of installation.
    2. Align the first panel row along the reference cord and fasten the boards.
    3. Apply further panel rows according to the installation scheme on previous page.
    4. The joint width is approx. 1/16” to 1/6”, depending on the perforation pattern.

    Note: Check overall appearance of the ceiling constantly by alignment via the straights and diagonals of the perforation rows during installation.

    Check the Perforation Design

    Note: Check overall appearance of the ceiling constantly by alignment via the straights and diagonals of the perforation rows during installation.

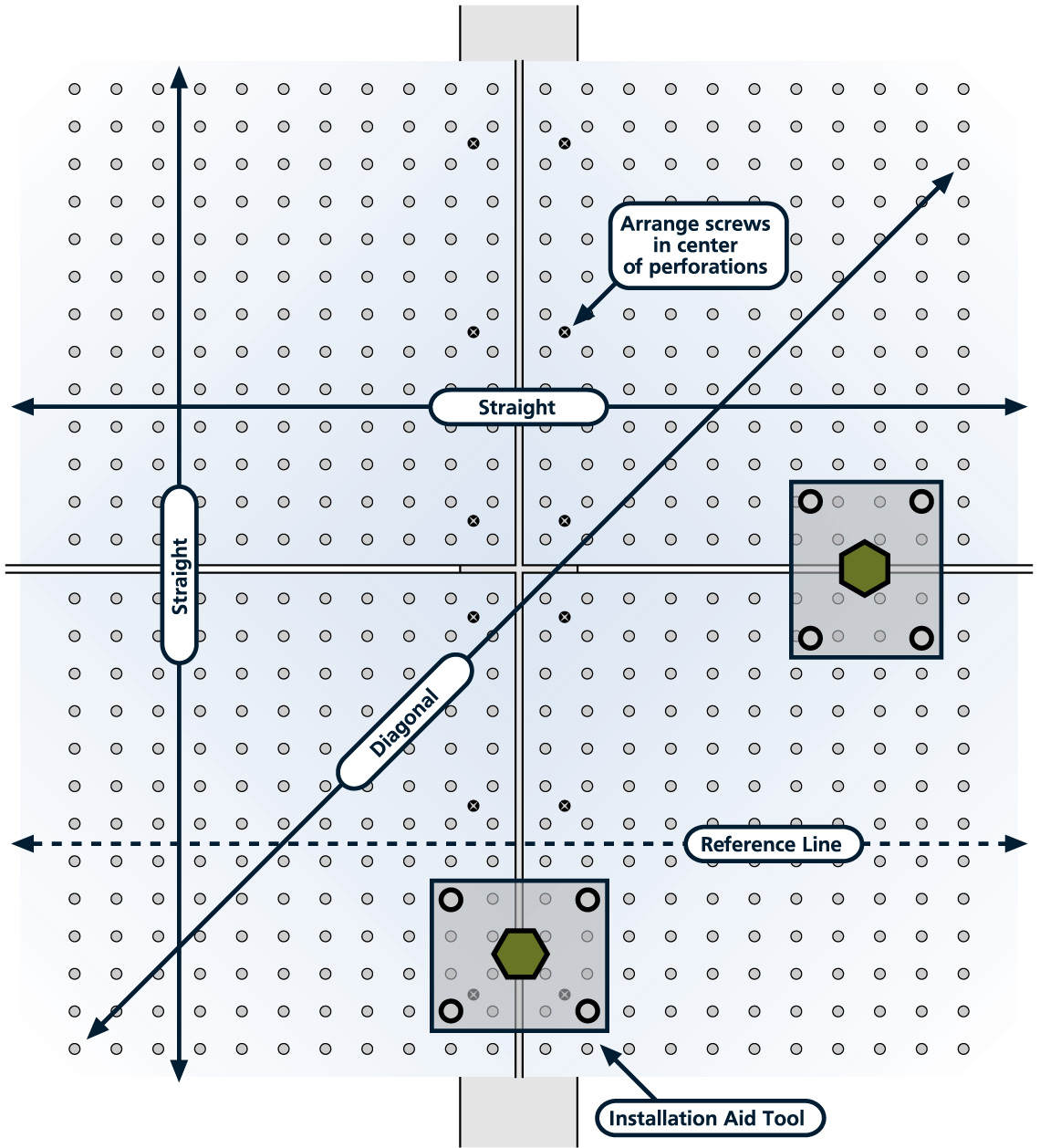

    Note: Alignment of the perforation, not using the board edge.

    Using the Installation Aid Tool

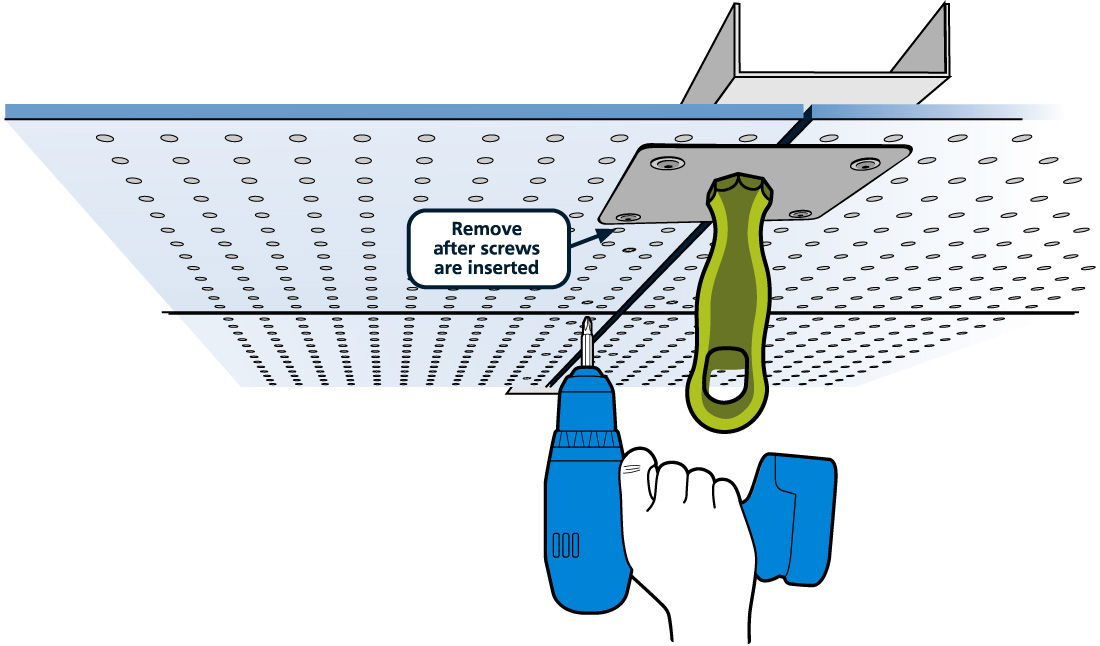

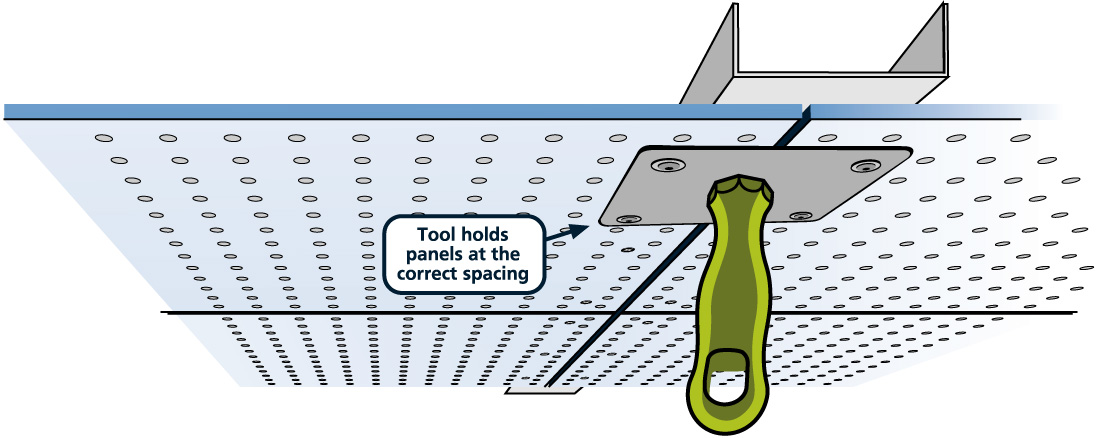

    Use the panel installation aid tool with a suitable perforation spacing to verify the perforation spacings as well as a template for drilling missing perforations (e.g. filled with compound).

    Fastening the Boards

    A 3 person team is recommended for installation.

    Note: Use a cordless drywall drill with adjustable torque settings. Should the torque or the contact pressure be too high, spinning of the bit or rupture of the board edge is possible.
    Adjust the torque to suit the conditions and device type.

    1. Screw fasten the GypSorb panels using drywall screws 0.14” x 1.18” to the metal grid made of CD 60/27 channels.
    Distance between screw centers 6.69”.
    2. Press the panels firmly onto the furring channel grid before and during screw fastening.
    3. Commence fastening in the corner, where the panel is already bordering a board on the long and front side.
    4. Fasten the long side first and then the front side.
